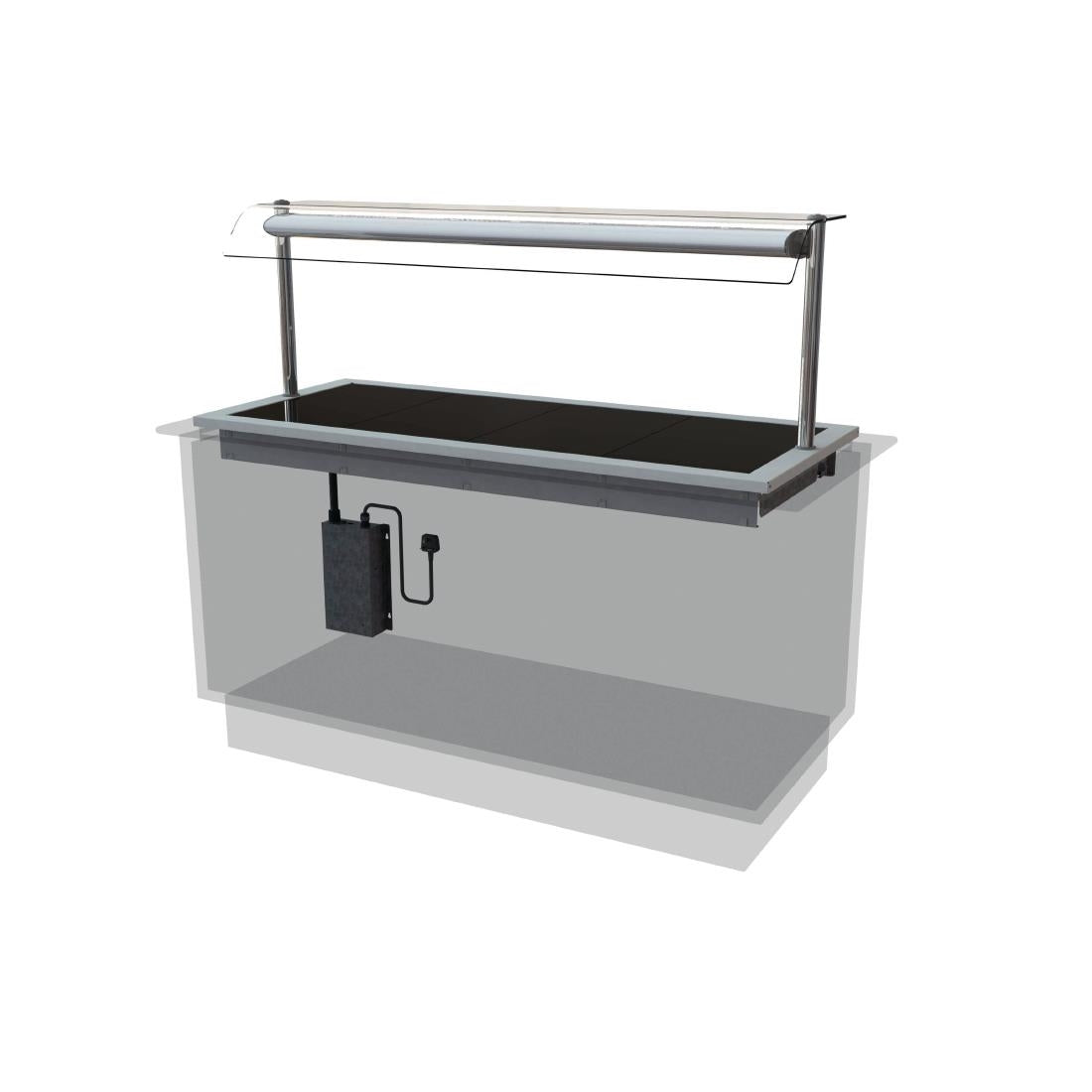

CED Designline Drop In Ceran Glass Hotplate HP4

CED Designline Drop In Ceran Glass Hotplate HP4
Capacity: 4x 1/1 GN | Self service | Width: 1525mm
Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline self help ceran glass hotplate drop in display. This 4/1 Gn size hot display features a 4/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN's Sold Separatley.


Product Features:
Capacity: 4 x 1/1 GN
Dimensions: 535(H) x 1525(W) x 660(D)mm
Material: Curved Toughened Glass, Stainless Steel and Aluminium
Power: 2.6kW, 230V, 13A
Supplier Ref: HP4
Temp Range: 85°C to 110°C
Voltage: 230V
Warranty: 1 Year
Weight: 64kg
Colour: Silver
• Presentation area heated evenly from underneath by individual heater mat elements
• Gantry-mounted digital temperature display is easy to monitor
• Simple base heat control panel and top heat control by dimmer switch
• Smart curved display in bright polished steel with aluminium profile
• Curved glass profile complements other Designline units
• 24-hour operation as standard
• Supplied with lifting kit for installation
• Comes with concealed control box and UK 3-pin plug top on a 2m lead
• Infrared quartz heat lamps provide surface heat and illumination to each 1/1GN area
• Gantry fitted with curved toughened sneeze screen glass for food protection
• Lamps within the gantry showcase food displays
