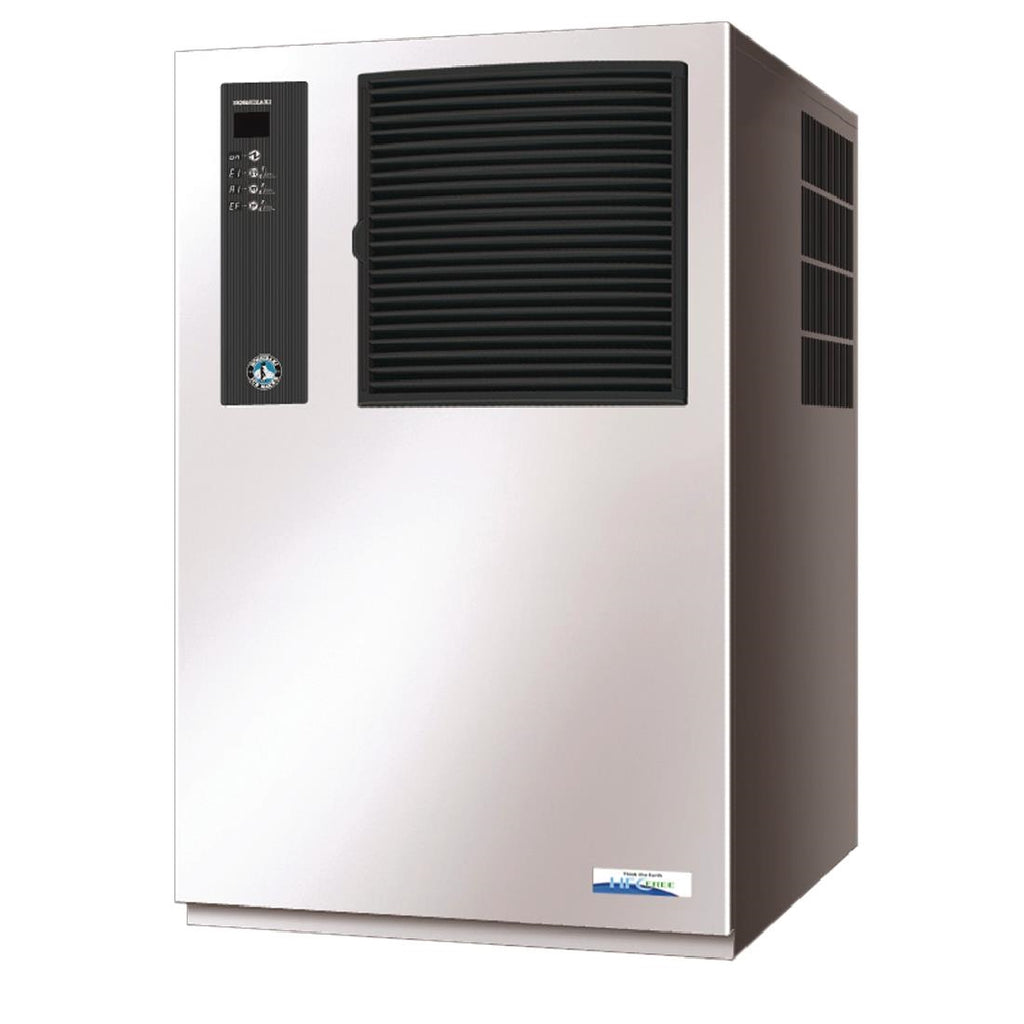

Hoshizaki Modular Air-Cooled HFC-Free Ice Maker IM-240-ANE-HC-23
Output: 225kg/24hr. M Cube
The Hoshizaki IM240-ANE-HC-23 is a modular HydroCarbon Ice Maker head designed to be compatible with all Hoshizaki modular bins giving the flexibility to have an ice system solution perfectly matched to your requirements. This particular head produces up to 225kg of ice per 24 hours and it produces medium ice cubes (23 x 28 x 28 mm). This is the new HC model using 27% less energy and 7% less water than its predecessor, saving on running costs.

Please note: limescale can cause serious damage to your ice machine. We recommend a water filter is fitted to reduce limescale and maintain ice quality.


Product Features:
Dimensions: 880(H) x 560(W) x 700(D)mm
Material: Stainless Steel
Output: 225kg/24hr
Power: 860W, 3.7A
Refrigerant: R290 / GWP 3
Supplier Ref: IM-240-ANE-HC-23
Voltage: 230V
Warranty: 2 Years
Weight: 89kg
Colour: Silver
• Output: up to 225kg per 24 hours (Medium cubes: 23 x 28 x 28 mm)
• Uses Hoshizaki closed cell system offering ultimate contamination protection
• Microcomputer control manages the ice making process, ensuring optimal performance
• Installed leak detector ensures automatic shutdown in event of leaking gas

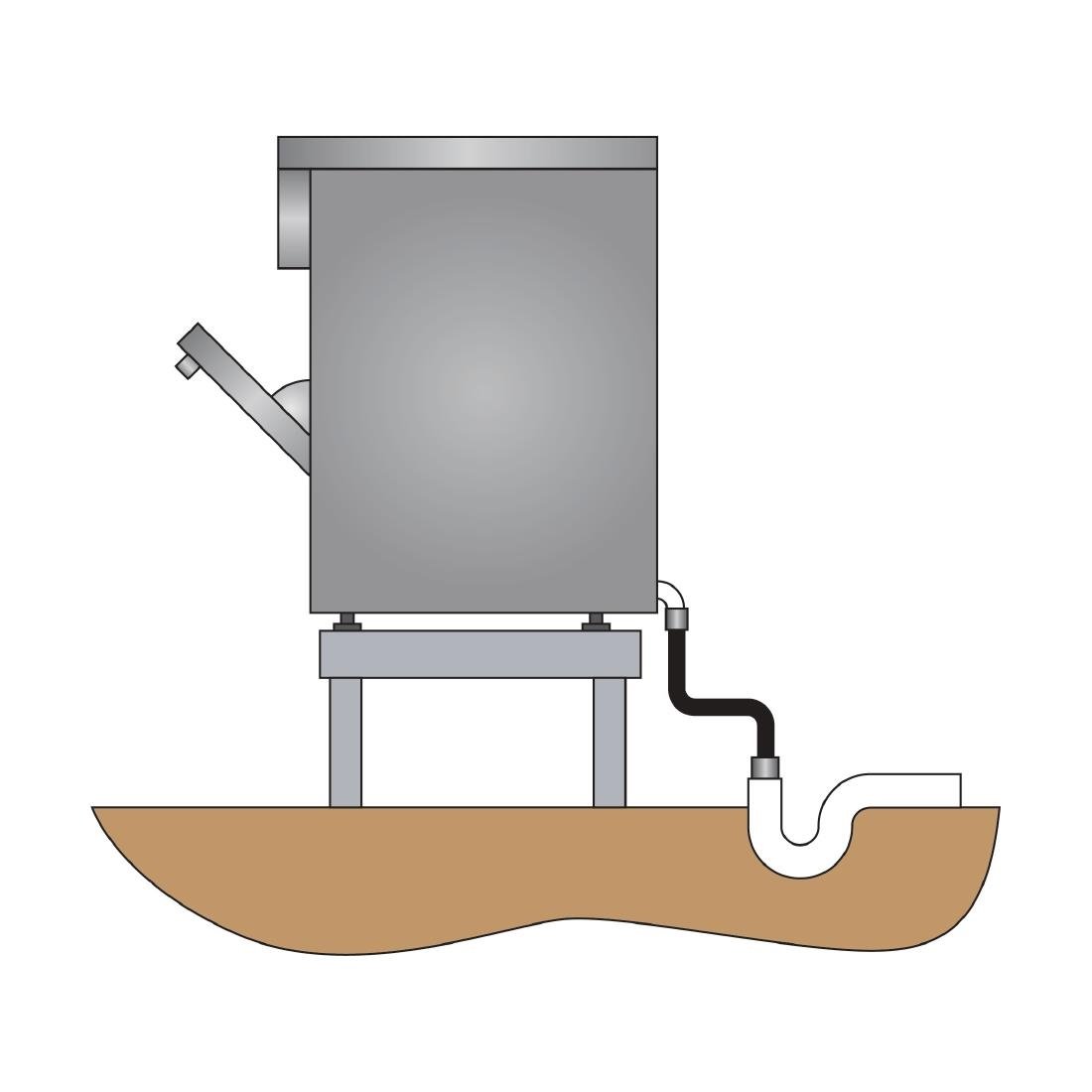

• Gravity drain
• Site call/survey included as standard
• Compatible with CY212,CY213 & CY214 storage bins and top kits, depending on ice storage requirements
• Modular head compatible with all Hoshizaki modular storage bins for added flexibility
• Eco Friendly HFC free foam injected polyurethane for insulation preserves ice quality and consistency
• HC model using 27% less energy and 7% less water than its predecessor saving on running costs
